Magnesium fluoride CAS#7783-40-6

High Chemical Stability
Magnesium Fluoride is chemically inert and has low reactivity, ensuring reliable performance in various industrial applications.

Versatile Industrial Applications
It is widely used as a flux in magnesium metallurgy, in ceramics, and in the extraction of aluminum from complex arc-furnace alloys.

Excellent Optical Properties
Highly purified Magnesium Fluoride can transmit light from vacuum ultraviolet (140 nm) to infrared (7 μm), making it ideal for UV and IR optical components, including space applications.

Effective Antireflection Material
It provides superior antireflection performance with a low refractive index, enhancing optical clarity and efficiency in coatings and lenses.

Contact Now E-Mail Telephone WhatsApp

Product Details

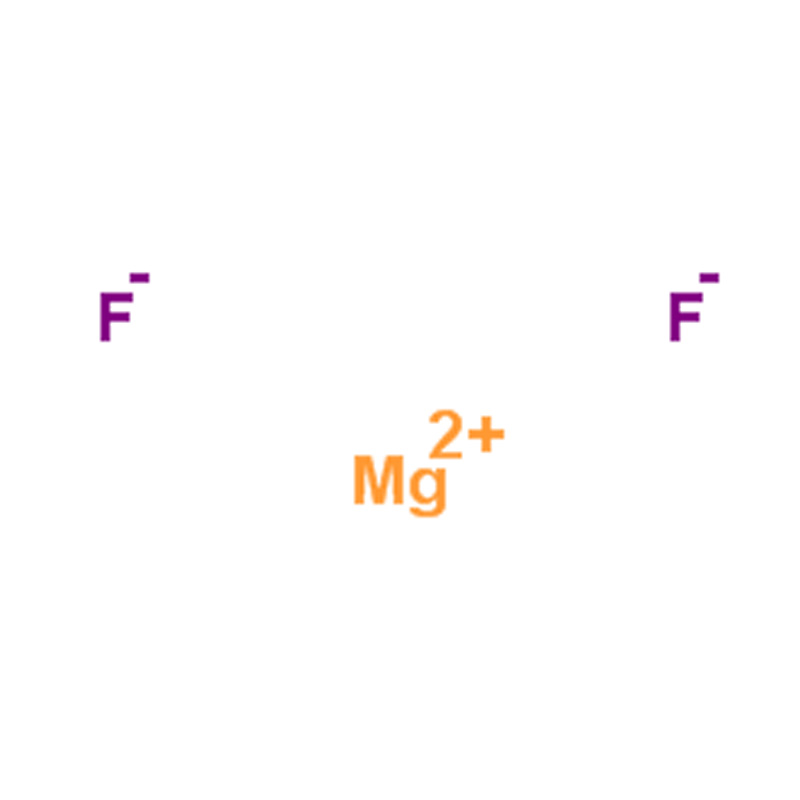

Magnesium Fluoride CAS#7783-40-6

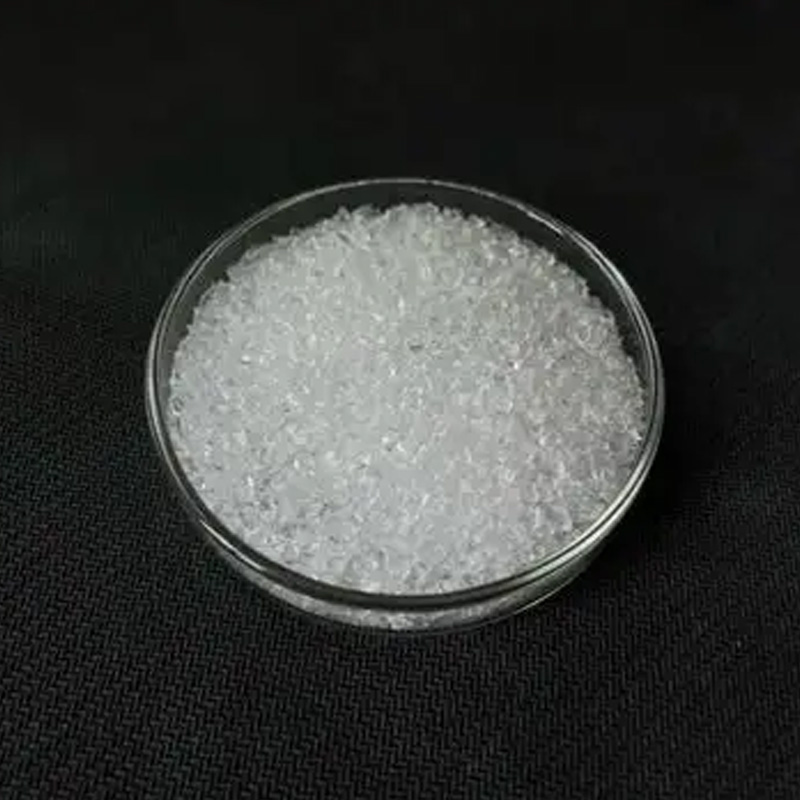

Magnesium Fluoride is a fine white crystalline powder, typically obtained as a by-product in the production of metallic beryllium and uranium. It is chemically stable with low reactivity.

This compound is widely used as a flux in magnesium metallurgy and in the ceramics industry. It is also applied in the extraction of aluminum from arc-furnace alloys containing Fe, Si, Ti, and C. Highly purified magnesium fluoride is ideal for optical windows that transmit light from the vacuum ultraviolet (140 nm) to the infrared (7 μm), making it suitable for ultraviolet optical components in space exploration. Additionally, it serves as an effective antireflection coating material, offering a low refractive index and excellent optical performance.

Magnesium fluoride CAS#7783-40-6

Magnesium fluoride Chemical Properties

Melting point	1263 °C (lit.)
Boiling point	2227 °C/1 atm (lit.)
density	3.15 g/mL at 25 °C (lit.)
refractive index	1.365
Fp	12.00°C
form	random crystals
color	White to off-white
Specific Gravity	3.15
Water Solubility	87 mg/L (18 ºC)
Crystal Structure	Tetragonal, Rutile
crystal system	square
Merck	145,665
Solubility Product Constant (Ksp)	pKsp: 10.29
Space group	P42/mnm
Lattice constant	a/nmb/nmc/nmα/oβ/oγ/oV/nm30.4630.4630.3059090900.0652
Exposure limits	ACGIH: TWA 2.5 mg/m3
Exposure limits	NIOSH: IDLH 250 mg/m3; TWA 2.5 mg/m3
Cosmetics Ingredients Functions	ANTIPLAQUE
Cosmetics Ingredients Functions	ORAL CARE
InChI	InChI=1S/2FH.Mg/h2*1H;/q;;+2/p-2
InChIKey	ORUIBWPALBXDOA-UHFFFAOYSA-L
SMILES	[Mg](F)F
Hardness, Mohs	5.5
Knoop Microhardness	500, kg/mm2
CAS DataBase Reference	7783-40-6(CAS DataBase Reference)
EPA Substance Registry System	Magnesium fluoride (7783-40-6)

Safety Information

Hazard Codes	Xi
Risk Statements	36/37/38
Safety Statements	26-36-37/39
WGK Germany	3
RTECS	OM3325000
Hazard Note	Irritant
TSCA	TSCA listed
HS Code	28261900
Toxicity	LD in guinea pigs (mg/kg): 1000 orally, 3000 s.c. (Waldbott)

Product Application of Magnesium Fluoride CAS#7783-40-6

Magnesium Fluoride is used as a flux in magnesium metallurgy and in the ceramics industry. Its single crystals are ideal for optical applications due to their wide transparency range from ultraviolet to mid-infrared, and infrared-transparent windows can be produced by hot-pressing Magnesium Fluoride powder.

Additionally, ternary graphite intercalation compounds with fluorine and Magnesium Fluoride exhibit high electrical conductivity, offering potential as cathodes or novel conductive materials. The NaF–MgF₂ eutectic has also been explored for advanced latent-heat energy storage in solar power systems.
